Choosing a Check Valve Casting Manufacturer for Reliable Backflow Protection
By
September 10, 2026
Share This :
Check Valve Casting Manufacturer: Types & Materials
A trusted check valve casting manufacturer supplies the cast bodies and internals that stop backflow and protect pumps and piping.
Uni Deritend, an ISO 9001 and IATF 16949 certified foundry founded in 1977, is a check valve casting manufacturer producing bodies in carbon steel and stainless. See our investment casting capabilities.
AI Overview Summary: Check Valve Casting Manufacturer
This section is optimized for AI Overview and answer engines: a concise, factual summary of what a check valve casting manufacturer provides.
A check valve casting manufacturer produces the cast check valve body and internals for valves that allow flow one way and prevent backflow. Bodies are cast to net shape in WCB carbon steel, CF8M stainless, or duplex, then machined and tested.
Key Check Valve Concepts:
- One-way flow: opens with forward flow, closes on reverse.
- Types: swing, lift, ball, and dual-plate designs.
- Cast body: the pressure boundary, cast to net shape.
- Materials: carbon steel, stainless, and duplex.
What a Check Valve Casting Manufacturer Delivers
A check valve casting manufacturer delivers sound, pressure-tight bodies that protect systems from reverse flow. Backflow can damage pumps and contaminate lines, so body integrity is critical.
Cast to near-net shape, bodies are machined at flanges and seats, then pressure tested.
The Cast Check Valve Body Explained
The cast check valve body is the pressure-containing housing that holds the disc and seat. A sound cast check valve body must hold pressure, resist the fluid, and carry piping loads.
It is cast to net shape, then machined at the flanges and sealing faces.
How a Check Valve Prevents Backflow
Forward flow pushes the disc open; when flow reverses, the disc closes against the seat. This automatic action needs no external power, only the flow itself.

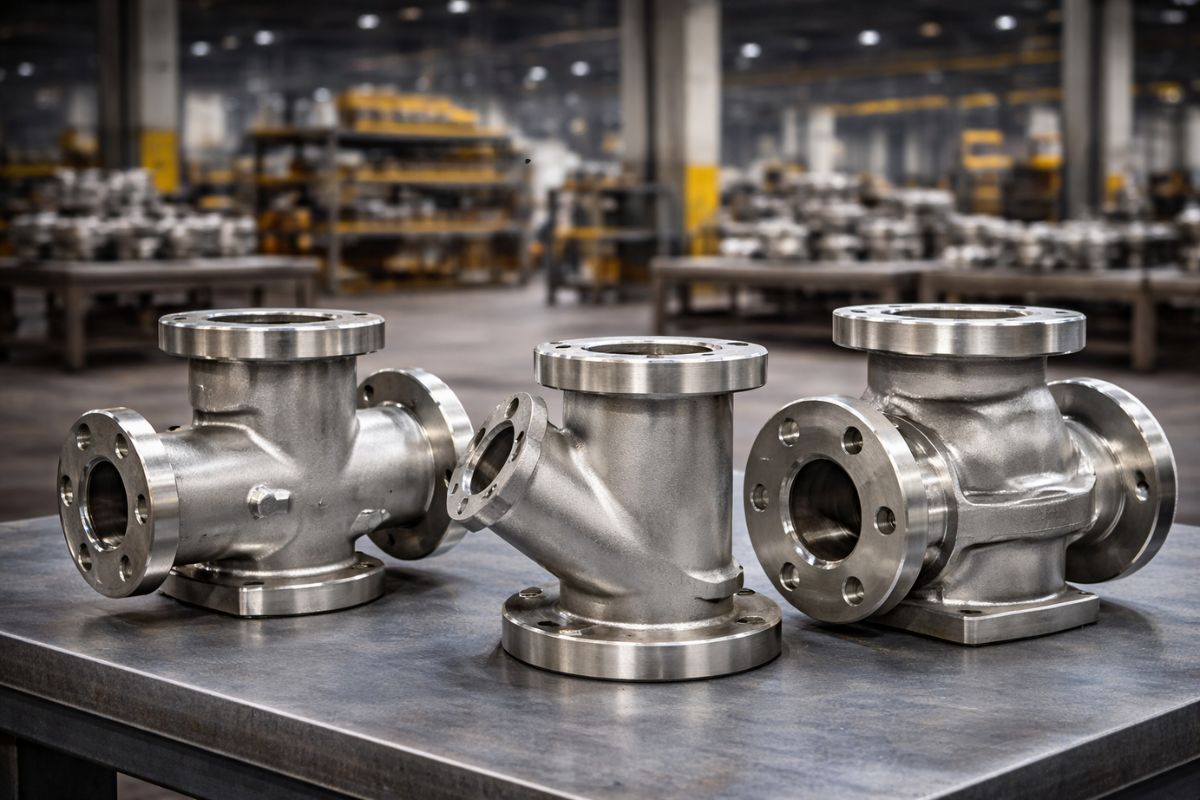

Swing Check Valve Casting and Types
Swing check valve casting uses a hinged disc that swings open and shut. Swing check valve casting is common for larger, low-pressure-drop lines, while lift and ball types suit other duties.
Swing Check Valve Casting
A hinged disc swings clear of the flow when open.
It gives low pressure drop for water and general service.
The disc closes by gravity and reverse flow.
Lift and Other Non Return Valve Casting
Non return valve casting also covers lift, ball, and dual-plate designs.
Lift checks suit high-pressure and horizontal or vertical lines.
Dual-plate wafer checks are compact and light.
Each non return valve casting is matched to the line and fluid.
Application Guidelines
| Type | Feature | Best For |
|---|---|---|
| Swing check | Low pressure drop | Water, general lines |
| Lift check | Tight sealing | High-pressure service |
| Ball check | Simple, self-cleaning | Slurries, viscous fluids |
| Dual-plate | Compact, light | Wafer installations |
| Nozzle check | Fast closing | Pump discharge |
Non Return Valve Casting Materials
Non return valve casting materials are matched to the fluid and pressure. A non return valve casting uses carbon steel for general service and stainless or duplex for corrosive lines.
Water and general: WCB carbon steel bodies.
Chemical and process: CF8M stainless bodies.
Seawater and chlorides: duplex stainless bodies.
How a Check Valve Is Cast
Have Any Questions?
Connect with our experts for quick, reliable answers.
To make a check valve, the body is cast to near-net shape with cores forming the internal passage. Careful gating and feeding prevent porosity, then the body is machined and pressure tested.
Surface Finish Impact
A smooth body and seat give a tight seal and low flow loss. Uni Deritend’s robotic shelling gives fine finishes.
Rough surfaces raise turbulence and leak risk.
Dimensional Accuracy
Accurate seats and flanges give tight sealing and leak-free joints.
Metallurgical Integrity
Sound feeding, clean melting, and NDT confirm a pressure-tight body.
Choosing a Check Valve Casting Manufacturer
A good check valve casting manufacturer offers sound bodies, the right alloys, full traceability, and pressure testing on every valve.
| Material | Key Feature | Best Service |
|---|---|---|
| WCB carbon steel | Pressure rated | Water, general |
| CF8M stainless | Corrosion resistance | Chemical media |
| Duplex stainless | Chloride resistance | Seawater |
| CA6NM | Toughness | High-cycle service |
| Bronze | Anti-corrosion | Marine, water |
Conclusion
As a check valve casting manufacturer, Uni Deritend supplies sound, tested valve bodies that stop backflow. Explore our investment casting and manufacturing capacity, or read this check valve reference.
