Precision Impeller Casting Manufacturer
Engineering High-Performance Pump Components Since 1974
Uni-Deritend Limited (UDL) is India’s leading Impeller Casting Manufacturer, delivering high-quality impellers for pumps across chemical, marine, water, and industrial applications.. With over 50 years of metallurgical expertise, two state-of-the-art manufacturing facilities, and India’s first robotic shelling system, we deliver impellers that meet the most demanding performance specifications for flow efficiency, corrosion resistance, and operational reliability.
[Get a Quote] [Download Impeller Capabilities Brochure]
Understanding Impeller Castings
What is an Impeller?
An impeller is the rotating component of a centrifugal pump that transfers energy from the motor to the fluid being pumped. The impeller’s design directly impacts pump efficiency, head pressure, flow rate, and operational reliability. As the heart of any centrifugal pump, impeller quality is critical for system performance.
Why Investment Casting for Impellers?
Investment casting (lost wax casting) is the preferred manufacturing method for pump impellers due to its ability to produce:
- Complex vane geometries optimized for hydraulic efficiency
- Smooth internal surfaces reducing turbulence and friction losses
- Near-net-shape components minimizing machining requirements
- Consistent dimensional accuracy for balanced rotation
- Wide range of corrosion-resistant alloys
- Intricate features impossible with other manufacturing methods
At UDL, our investment casting process delivers impellers with superior surface finish, dimensional precision, and metallurgical integrity essential for pump performance.

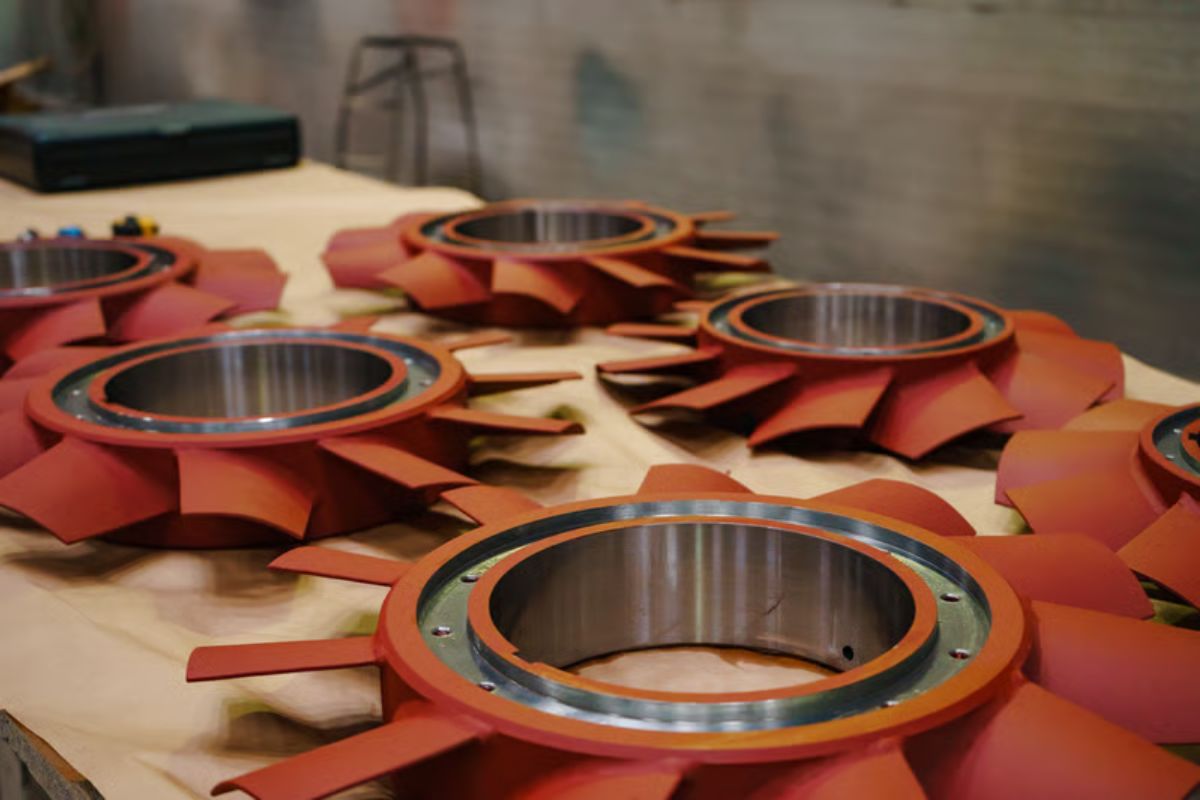

Types of Impeller Castings We Manufacture
Open Impeller Castings
Open impellers feature vanes attached to a central hub without front or back shrouds. These designs are ideal for:
- Handling solids-laden fluids
- Slurry and wastewater applications
- Fluids with fibrous materials
- Applications requiring easy cleaning
- Low-head, high-flow applications
Advantages:
- Less prone to clogging
- Easy to inspect and clean
- Lower manufacturing cost
- Adjustable clearances
Closed Impeller Castings
Closed impellers have shrouds on both sides of the vanes, creating enclosed flow channels. These designs excel in:
- Clean fluid applications
- High-efficiency requirements
- High-head applications
- Process and chemical pumps
- Water supply systems
Advantages:
- Higher hydraulic efficiency
- Better pressure development
- Reduced recirculation losses
- Longer wear life in clean services
Semi-Open Impeller Castings
Semi-open impellers feature a back shroud only, offering a balance between open and closed designs:
- Moderate solids handling capability
- Better efficiency than open impellers
- Paper and pulp industry applications
- Food processing pumps

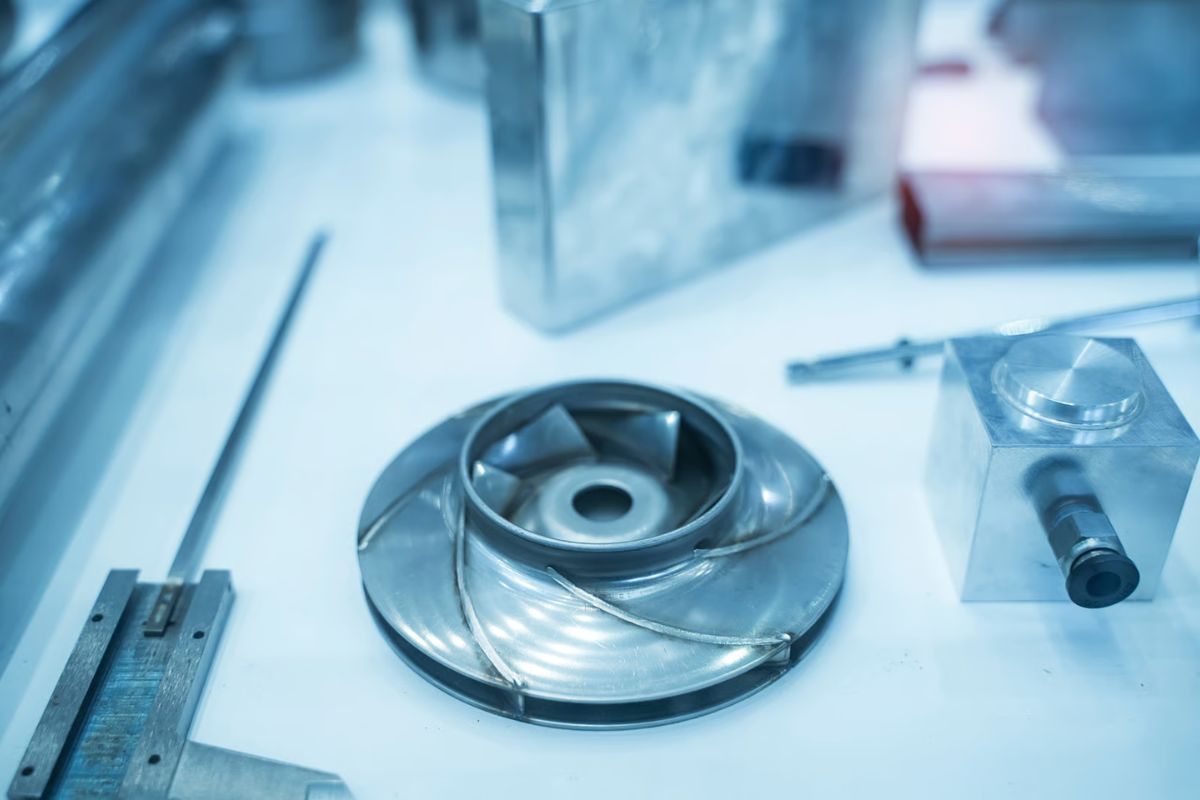

Custom Pump Impeller Castings
UDL specializes in custom impeller castings designed to your specifications:
- Application-specific vane designs
- Optimized hydraulic profiles
- Special alloys for corrosive services
- Wear-resistant configurations
- Prototype to production volumes
Materials for Impeller Castings
Stainless Steel Impeller Castings
Stainless steel is the most popular choice for pump impellers due to its excellent combination of corrosion resistance, strength, and cost-effectiveness.
| Alloy | Key Properties | Typical Applications |
|---|---|---|
| CF8M (316) | Excellent corrosion resistance, good strength | Chemical processing, water treatment |
| CF8 (304) | Good corrosion resistance, cost-effective | General industrial, food processing |
| CF3M (316L) | Low carbon, superior weldability | Pharmaceutical, sanitary applications |
| CD4MCu (Duplex) | High strength, stress corrosion resistance | Seawater, aggressive chemicals |
| CE8MN (Super Duplex) | Superior pitting resistance | Offshore, chloride environments |
OUR CERTIFICATIONS
Bronze Impeller Castings
Bronze alloys offer excellent corrosion resistance in marine and water applications:
| Alloy | Key Properties | Typical Applications |
|---|---|---|
| C83600 (Leaded Red Brass) | Good machinability, moderate strength | General water service |
| C95400 (Aluminum Bronze) | High strength, excellent wear resistance | Marine, heavy-duty pumps |
| Alloy | Key Properties | Typical Applications |
|---|---|---|
| C95800 (Nickel Aluminum Bronze) | Superior seawater resistance | Naval vessels, offshore platforms |
| C87600 (Silicon Bronze) | Excellent corrosion resistance | Chemical service, dezincification-resistant |
High-Performance Alloy Impellers
For severe service applications, we cast impellers in specialty alloys:
- Hastelloy C-276: Exceptional chemical resistance for aggressive media
- Monel 400: Seawater and hydrofluoric acid resistance
- Alloy 20: Sulfuric acid service
- Titanium: Ultimate corrosion resistance

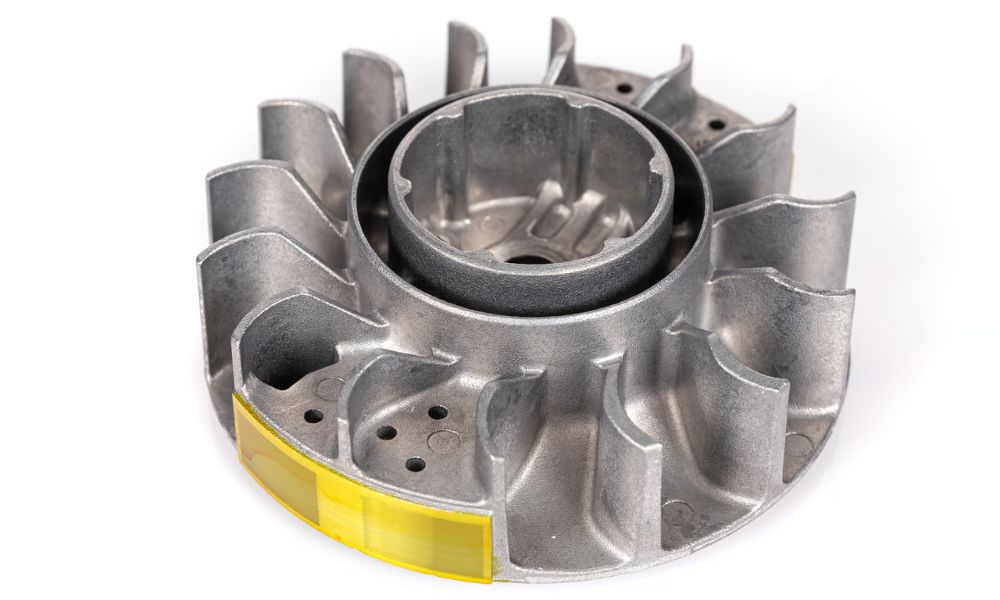

Manufacturing Capabilities
Investment Casting Process for Impellers
Our impeller manufacturing process ensures optimal quality:
1. Pattern and Tooling Development
- In-house tool design optimized for impeller geometry
- Wax pattern injection with precise dimensional control
- Pattern assembly for complex vane configurations
2. Ceramic Shell Building
- India's first robotic shelling system
- Consistent shell quality for smooth surfaces
- Controlled drying for dimensional stability
3. Casting and Solidification
- Air melt induction furnaces with precise temperature control
- Optimized gating and feeding for sound castings
- Controlled cooling for metallurgical integrity
4. Finishing Operations
- Heat treatment per specification
- CNC machining for critical dimensions
- Surface finishing and polishing
- Dynamic balancing capabilities
Quality Assurance for Impellers
Every impeller casting undergoes comprehensive inspection:
- Dimensional verification (CMM inspection)
- Non-destructive testing (RT, PT, UT)
- Chemical analysis (spectrometer)
- Mechanical testing
- Surface roughness measurement
- Balance testing (where required)
Industries and Applications
Water and Wastewater
- Municipal water supply pumps
- Sewage and effluent pumps
- Desalination plants
- Irrigation systems
Chemical Processing
- Acid transfer pumps
- Process chemical pumps
- Reactor circulation
- Solvent handling
Oil and Gas
- Crude oil transfer
- Offshore platform pumps
- Refinery process pumps
- Pipeline boosting
Marine and Shipbuilding
- Ballast pumps
- Cooling water circulation
- Fire-fighting pumps
- Cargo pumps
Power Generation
- Boiler feed pumps
- Condensate extraction
- Cooling tower circulation
- Ash handling systems
Why Choose UDL for Impeller Castings?
50+ Years of Expertise
Founded in 1974, we bring five decades of investment casting knowledge to impeller manufacturing.
Advanced Technology
India’s first robotic shelling system ensures consistent quality and superior surface finish.
Material Expertise
225+ alloys with in-house metallurgical capabilities for optimal material selection.
Complete Solutions
From design consultation through finished, balanced impellers—single source responsibility.
Certifications
- IATF 16949:2016
- ISO 9001:2015
- ISO 14001:2015
- ISO 45001:2018
- PED 2014/68/EU
- AD 2000 Merkblatt W0
Frequently Asked Questions
Frequently Asked Question on Alloy Steel Investment Casting
Partner with India’s Leading Impeller Casting Manufacturer
Whether you need prototype quantities or high-volume production, UDL delivers precision impeller castings that optimize pump performance.
Contact our engineering team today:
📞 +91 22 4968 9114
📧 marketing@unideritend.com
[Request a Quote] [Schedule Technical Consultation]
